HVLS I BLDC I Air Circulators I Exhaust I Wall I Pedestal

Fans & Air Circulators

HVLS Fans - High Volume Low Speed / BIG Fans

HVLS fans move large volume of air at low speeds over a large area . HVLS fan has combined the physics of slow moving air with complex principles of aerodynamics to create an efficient , economical and environment friendly solution for large spaces. The result is consistant air temperature , improved air circulation and energy efficiency.

Stage - 1

HVLS working principle

A column of air moves down

Stage - 2

HVLS working principle

Air moves out from the center along the floor creating a draft

Stage - 3

HVLS working principle

Column rises up along the side walls or air draft from another HVLS fan

Stage - 4

HVLS working principle

Air is redirected towards the HVLS fan

BLDC - How it works & saves energy ?

  • A BLDC fan takes in AC voltage and internally converts it into DC using SMPS.  BLDC uses a combination of Permanent Magnets and Electronics to achieve the kind of efficiency and performance it delivers.
  • In a BLDC motor, as there are no brushes so the commutation is done by the driving algorithm in the Electronics. Hence no wear and tear of brushes making the motor more rugged for long-term use.
  • One added advantage in a BLDC fans due to use of an electronic circuit is that you can add several additional features to increase convenience, few example of the same are sleep mode, timer mode also it is compatible with Home automation systems.
  • Compared to regular induction fan, a BLDC fan can save enormously upto Rs 1000-1500/ Year/fan. And because there is no heating of the motor, the life of a BLDC fan is also expected to be much higher than ordinary fans.

Ceiling Fans

Super Savers - BLDC I-TOME

  • Save up to 50% Electricity – consumes approx. 26-28 W only
  • BEE 5 Star rating  for energy saving
  • Advance Inverter Technology based Fan.
  • Operated with normal regulator
  • Super Efficient Noise less motor.
  • Robust & reliable inverter motor powered by Electronically commutated motor technology
  • 100% rust free blades made of high grade aluminum
  • Various Range of Fan Color & finish to match 5th Wall of the Room.
  • Robust Fan structure.
  • Works on Low Voltages (140 ~ 270V)
BLDC FAN
BLDC ITOME SPECS

Other Models

Super Savers - BLDC

HECTOR - 500 BLDC

Wattage : 35W
Sweep : 1200mm
Air Delivery : 230cmm
RPM : 350
Super Efficient Noiseless BLDC Motor motors powered by Electronically commutated motor technology. Inverter fan series operated with normal regulator

ECOTECH + BLDC

Wattage : 32W
Sweep : 1200mm
Air Delivery : 220cmm
RPM : 370
Super efficient fan with > 50% energy saving BLDC Motor + electronic communication

HECTOR - 500 BLDC

Wattage : 32W
Sweep : 1200mm
Air Delivery : 220cmm
RPM : 370
Super efficient fan with > 50% energy saving BLDC Motor + electronic communication

Other Models

Super Savers - BLDC

Smart Saver

Sweep : 1200mm
Air Delivery : 230cmm
RPM : 350
BEE 5 STAR rated fanFull copper motorFull powder coated

Energy Star

Sweep : 1200mm
Air Delivery : 220cmm
RPM : 320
BEE 5 STAR rated fan Full copper motorRibbed Aluminum wide blades

ceiling Fans

Economy Models

G-MODEL

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

NEW AIR

Sweep(mm) : 600/900/1050/1200/1400
Air Delivery(cmm) : 110/150/180/225/265
RPM : 850/400/380/320/300

NEW BREEZE

Sweep(mm) : 600/750
Air Delivery(cmm) : 140/150
RPM : 850/720

NEW HURRICANE

Sweep(mm) : 900/1050/1200/1400
Air Delivery(cmm) : 150/180/225/265
RPM : 400/380/370/300

SUMMER BREEZE

Sweep(mm) : 900/1200/1400
Air Delivery(cmm) : 150/230/265
RPM : 400/370/300

NEW BREEZE

Sweep(mm) : 600/750
Air Delivery(cmm) : 140/150
RPM : 850/720

ceiling Fans

Premium Models

AEROSLIM - IOT

Sweep(mm) : 900/1200/1400
Air Delivery(cmm) : 150/230/265
RPM : 400/370/300
Telescopic adjustable mounting , premium hydrographic finish & blades made of high-grade glass-filled compounded ABS This smart fan is IoT-enabled.

AEROSLIM - IOT

Sweep(mm) : 900/120
Air Delivery(cmm) : 140/240
RPM : 430/310

AEROQUIET - Wooden

Sweep(mm) : 900/120
Air Delivery(cmm) : 140/240
RPM : 430/310

GRATIA

Sweep(mm) : 600/1050/1200/1400
Air Delivery(cmm) : 110/190/230/270
RPM : 850/380/320/300

JAZZ

Sweep(mm) : 1200
Air Delivery(cmm) : 230
RPM : 370

AEROQUIET - Wooden

Sweep(mm) : 900/120
Air Delivery(cmm) : 140/240
RPM : 430/310

AEROSLIM - IOT

Sweep(mm) : 900/1200/1400
Air Delivery(cmm) : 150/230/265
RPM : 400/370/300
Telescopic adjustable mounting , premium hydrographic finish & blades made of high-grade glass-filled compounded ABS This smart fan is IoT-enabled.

AEROSLIM - IOT

Sweep(mm) : 900/120
Air Delivery(cmm) : 140/240
RPM : 430/310

exhaust Fans

Exhaust Fans - Domestic

SMART AIR 150

Sweep(mm) : 100/150
Air Delivery(cmm) : 90/240
RPM : 2400/1800

VENTILATOR

Sweep(mm) : 150/200/250
Air Delivery(cmm) : 280/550/780
RPM : 1350/1320/1270

HILL AIR

Sweep(mm) : 225/300
Air Delivery(cmm) : 550/1290
RPM : 1350/1300

POWER FLOW

Sweep(mm) : 225/300
Air Delivery(cmm) : 865/1800
RPM : 1350/1320

exhaust Fans

Exhaust Fans - Industrials

HEAVY DUTY 300mm/1400 rpm

Air Delivery : 1,750 CM/HR
Power Consumption : 85 W

HEAVY DUTY 380mm/1400 rpm

Air Delivery : 3,500 CM/HR
Power Consumption : 150 W

HEAVY DUTY 300mm/1400 rpm

Air Delivery : 6,200 CM/HR
Power Consumption : 375 W

HEAVY DUTY 450mm/900 rpm

Air Delivery : 3,000 CM/HR
Power Consumption : 145W

HEAVY DUTY 600mm/900 rpm

Air Delivery : 10,000 CM/HR
Power Consumption : 500W

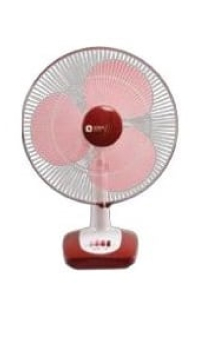

Table Fans

DESK 17

Sweep(mm) : 300
Air Delivery(cmm) : 480
RPM : 2000

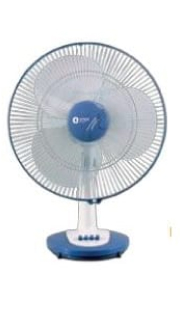

DESK 25

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

DESK 17

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

DESK 17

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

Wall Fans

WALL 11 -300 mm

Sweep(mm) : 300
Air Delivery(cmm) : 3000
RPM : 1400

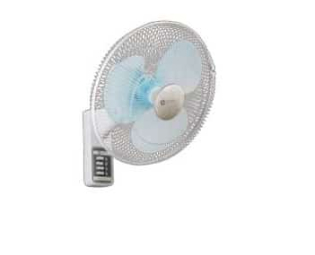

WALL 41

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

WALL 44 with Pull Cord

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

WALL 45

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

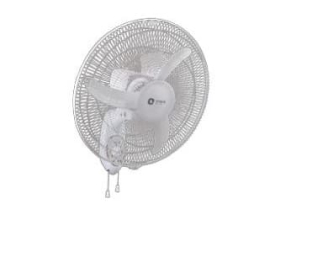

WALL 48 - 450 mm

Sweep(mm) : 450
Air Delivery(cmm) : 5220
RPM : 1300

Pedestal Fans

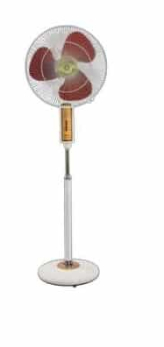

FLOOR SUPREME All Metal

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

STAND 31 Cross Base

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

STAND 31 Round Base

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300

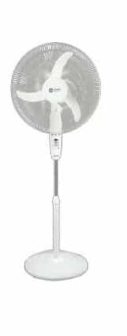

STAND 38 - 450 mm

Sweep(mm) : 400
Air Delivery(cmm) : 5220
RPM : 1300

Multi Utility Fans

ROTO 53

Sweep(mm) : 400
Air Delivery(cmm) : 5040
RPM : 1300
Wall mounting regulator 360 degree cyclic motion.

SPIND

Sweep(mm) : 300
Air Delivery(cmm) : 4800
RPM : 2000
Gyroscopic movement to set wind direction manually Aerodynamically designed blades for maximum air delivery.

ZIPPY

Sweep(mm) : 225
Air Delivery(cmm) : 960
RPM : 2500
Heavy duty motor with 2500 RPM provides high air thrust 2-in-1 advantage of wall mounting & table-top usage.

Life Style Fans

BLADELESS

Voltage : 220-240V
Frequency : 50/60 Hz
Power : 40W
Built In Timer Remote Mood Lights with swing

AUCTOR

Voltage : 220-240V
Frequency : 50/60 Hz
Power : 55/65W
Built In Timer Remote 3D Auto Oscillator

BLADELESS

Voltage : 220-240V
Frequency : 50/60 Hz
Power : 42W
1 Hour Timer Remote Rotating Grill

BLADELESS

Voltage : 220-240V
Frequency : 50/60 Hz
Power : 42W
Built IN Timer Remote Swing with Breeze Motor

Retro Series

RETRO RELIC

Sweep(mm) : 300
Air Delivery(cmm) : 3600
RPM : 2000
Also available in Antique Brass and Pewter finish Unique 3-speed rotary switch control + 90 degree oscillation.

RETRO T-12

Sweep(mm) : 300
Air Delivery(cmm) : 2800
RPM : 2000
3-speed rotary switch controlRubbed-bronze finish adds to the overall aesthetics.

RETRO T-16

Sweep(mm) : 400
Air Delivery(cmm) : 4800
RPM : 1280
3-speed rotary switch control Rubbed-bronze finish adds to the overall aesthetics.

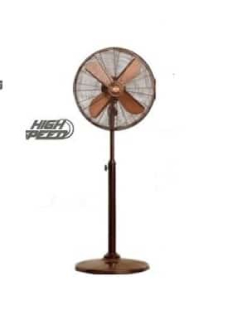

RETRO STAND

Sweep(mm) : 400
Air Delivery(cmm) : 4800
RPM : 1280
Sleek 4-leaf aluminium blade classic design Attractive rubbed-bronze finish.

Air Circulators

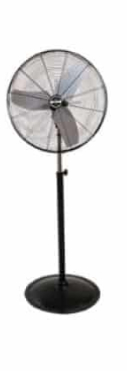

AC-STAND 18

Sweep(mm) : 450
Air Delivery(cmm) : 8100
RPM : 1400

AC-STAND 24

Sweep(mm) : 600
Air Delivery(cmm) : 1500
RPM : 1375

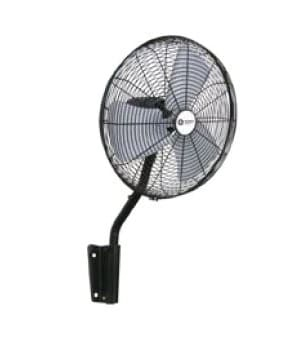

AC-WALL 18

Sweep(mm) :
Air Delivery(cmm) :
RPM :

AC-WALL 24

Sweep(mm) : 600
Air Delivery(cmm) : 15000
RPM : 1375

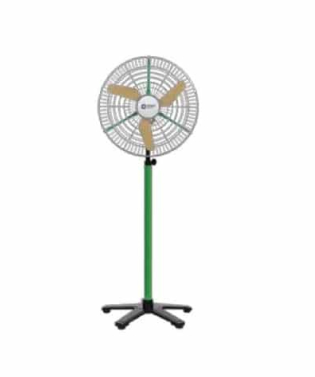

THUNDERSTORM PEDESTAL 450

Sweep(mm) : 450
Air Delivery(cmm) : 9000
RPM : 1450

THUNDERSTORM PEDESTAL 600

Sweep(mm) : 600
Air Delivery(cmm) : 8000
RPM : 1450

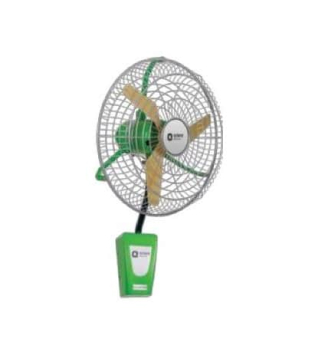

THUNDERSTORM WALL 450

Sweep(mm) : 450
Air Delivery(cmm) : 9000
RPM : 1450

THUNDERSTORM WALL 600

Sweep(mm) : 600
Air Delivery(cmm) : 18000
RPM : 1450

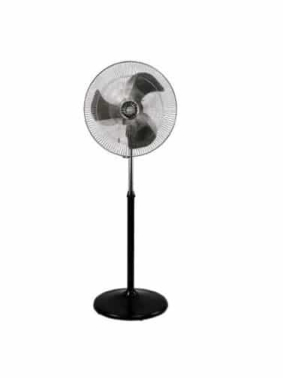

TORNADO - II STAND

Sweep(mm) : 450
Air Delivery(cmm) : 6030
RPM : 1325

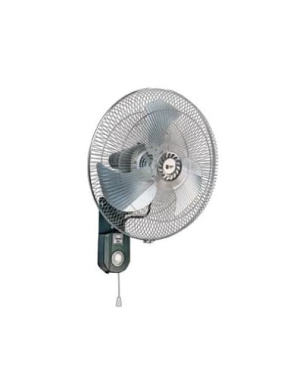

TORNADO - II WALL

Sweep(mm) : 450
Air Delivery(cmm) : 6030
RPM : 1325
