UV-C Germicidal
DISINFECTION
How it works?
All systems are with PHILIPS UV-C Germicidal Lamps
What is UV technology?
- Ultra-Violet (UV) light is invisible to the human eye and is divided into UV-A, UV-B and UV-C.
- UV-C is found within 100-280 nm range. In the graph can be seen that germicidal action is maximized at 265 nm with reductions on either side. Philips Low pressure UV-C lamps have their main emission at 254 nm where the action on DNA is 85% of the peak value and 80% on the IES curve. As a result, our germicidal lamps are extremely effective in breaking down the DNA of micro-organisms. This means that they cannot replicate and cause disease.
- Micro-organisms effective resistance to UV light varies considerably. Moreover, the environment of the particular micro-organism greatly influences the radiation dose needed for its destruction.
How does it work?
- UV-C radiation can break the DNA and RNA of bacteria,viruses and spores, meaning that they leave themharmless. There are no known micro-organisms resistant to UVC.1
- UV-C technology has been used safely and effectively in hospitals and governmental buildings for more than 40 years
- Most UV-C solutions utilize conventional lighting, with LED now improving in efficiency
- The peak output of our germicidal lamps (253.7nm) is close (80-85%) to the maximum effectiveness of UV-C (265nm)
- Smaller UV-C wavelengths (222nm) are being explored as less harmful alternatives
advantages :
- Pathogen kill rate is up to 99.9% – Germicidal UV is highly effective at getting rid of germs like viruses and bacteria.
Germicidal UV, or UV-C, is already used to disinfect air, surfaces, and water. When products are used correctly, the International
Ultraviolet Association (IUVA) believes UV light can inactivate COVID-19 because other coronaviruses respond to UV. However,
testing so far is limited and there cannot be a direct connection drawn between UV light and COVID-19. - No harsh chemicals – Forget about the combination of cleaners typically used to sanitize a space. UV can replace or reduce
the amount of harsh chemicals. It’s important to note, though, that UV does not replace cleaning measures such as dusting and wiping down surfaces, and the best solution involves UV, cleaning, and the use of antimicrobial protectants. - Multiple configurations – There is more than one way to use germicidal UV. You can choose between ceiling mounted
fixtures, mobile fixtures, or HVAC components. Chances are there is a product that fits the need for your application.
disadvantages :
- Safety is the number one reason to purchase from a manufacturer you trust – Not safe for humans. Not all UV wavelengths are safe for humans. Germicidal UV, or UV-C, is more powerful than the UVrays that hit the earth from the sun (UV-A and UV-B). Overexposure can cause damage to skin and eyes. There are products that have addressed these concerns.
- Time and effectiveness may vary – There is no set amount of time it takes for UV to inactivate germs. The time depends on
the product you’re using, the placement of the product, and the power of the product. This will vary by manufacturer. - Strict guidelines and product recommendations – A UV product is not one you buy, bring home, and just plug in. Thereare strict guidelines and recommendations for use. Following exact manufacturer instructions is key to ensure the highest effectiveness and safety for everyone around the products.
UV-C Upper Air Disinfection Systems
Upper Air Ceiling Mounted
Features
- 4xPL-S 9W TUV lamp included
- Beam control thanks to high reflective aluminum reflector and black louvres
- Ceiling plate for mounting on false ceiling 60×60 cm
- Shortwave UV radiation peak at 253.7 nm (UV-C)
- UV-C irradiation: up to 7 μW/cm2 @ 2m distance
- High Frequency electronic gear (HF-M)
- Mech. impact protection: IK02
- Ingress protection:IP20
- Protection class I
- Optimal temperature range: 20⁰C to 40⁰C
- Lifetime: 9000h – 90% UV-C @ end of life
- Declaration of Conformity
Technical Specifications
Upper Air Ceiling Mounted
Features
- 1xT8 25W TUV lamp included
- beam control thanks to high reflective aluminum reflector and black louvres
- shortwave UV-C radiation peak at 253.7 nm (UV-C)
- UV-C irradiation: up to 8.5 μW/cm2 @ 2m distance
- wall mounted
- High Frequency Performer electronic gear (HF-S)
- mech. impact protection: IK02
- ingress protection:IP20
- protection class I
- optimal temperature range: 20⁰C to 40⁰C
- lifetime: 9000h – 90% UV-C @ end of life
- easy maintenance of the lamp by rotation of the louvres block
- declaration of Conformity
Technical Specifications
UV-C Battens
UV-C BATTENS APPLICATIONS
UV-C Battens
Features
- Effective Lamp : 7 nm UV-C, No Ozone
- High efficiency: High UV content to wattage
- High Reflective Al Reflector to improve efficacy and direct light towards the target areas
- Anti-UV Coating to ensure robust and long-lasting housing and holders
- Applications : Offices, Hospitals, stores, schools and public transport.
*Please note – Sensor is just an enhanced safety mechanism to avoid any accidental human UV exposure. It should strictly not be used as a primary safety mechanism. The batten operation still needs to be controlled by the facility/ maintenance team and disinfection should be done only when there are no humans in the area being disinfected
Product Specifications

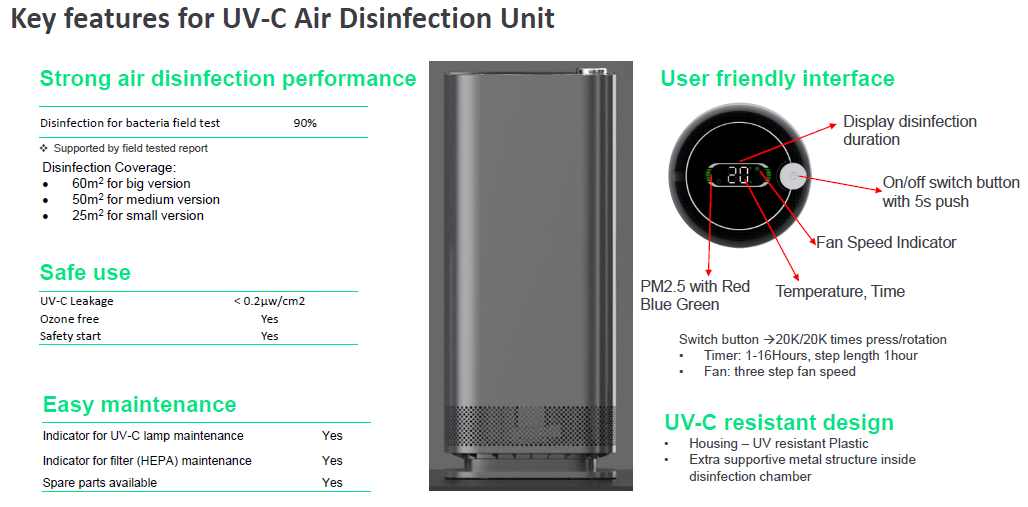

UV-C Disinfection Air Unit
The most comprehensive solution to address airborne transmission of pathogens in addition to purifying the air from particulate matter
The UV-C disinfection air unit is a powerful and effective way to disinfect circulating air. It draws air into the unit where UV-C radiation inactivates up to 90% of micro-organisms in 80m3 within just 2 hours (circular coverage 28m2)1. With no need for mounting, the freestanding unit can be wheeled into place in a wide range of professional applications, from offices and retail to hospitality. The aesthetic design delivers well-controlled UV-C radiation (RG0) and can also be used when people are present.
Benefits
- Achieves 90% air disinfection in 80m3 in 2 hours1.
- Circular coverage of 28m2.
- No fixed installation or mounting required and replaceable in the room.
- Reliable and strong UV-C irradiance inner chamber.
- User-friendly interface with clear display and range of flexible options.
Safeguard Benefits
Mechanical safety and germicidal effectiveness validated by independent scientific reports:
- Germicidal effectiveness validated by independent scientific report1.
- Specially-designed mechanical structure to keep UV-C leakage below limit and validated
by independent scientific report2. - Easy maintenance with display notification for spare parts.
UV-C Small Chambers - 10/15/30 Litres
UV-C Chambers- Industrial
Features
- Effective : 360 degree UV ray coverage to all surfaces of object
- Safety : Chamber only starts when the door is securely closed
- Enhanced Safety : Auto power off when the chamber is open ensuring no UV light exposure to user
- Fast : Can disinfect objects in matter of time, 5 mins to eliminate 99% bacteria and viruses to save time
- Environment friendly : No collateral damage to the environment of use
UV-C Chamber ( Big)
UV-C Chamber Applications
UV-C Chamber ( Medium)
UV-C Chamber Applications
UV-C Chamber ( Small)
UV-C Chamber Applications
UV-C Germicidal Disinfection for HVAC systems
UV Integrated Modules
Customized, Integrated Module
YourSource UV model with integrated driver is available in wattages of between 5Wand 40W to suit the needs of your application and can be customized to your equipment. As a result, it provides a seamless fit, both in terms of ergonomics and functionality. The enduser can always be confident of the correct performance of the UV Module, because it can only be replaced by the original lamp the system has been designed for. A safety switch avoids exposure to UV.
UV Compact Germicidal Lamps
TUV PL-L
Description
Philips TUV PL-L lamps are compact UVC (germicidal) lamps used in water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. Philips TUV PL-L lamps offer almost constant UV output over their complete lifetime. Thanks to the single-ended lamp base, lamp replacement is easy, making maintenance hassle free.
Main Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Air disinfection systems in for example hospitals, universities and laboratories
- In-duct air treatment units
- Stand alone air purifiers
- Residential drinking water units
- Fish pond and process water units
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
Technical Specifications
TUV PL-S
Description
Philips TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units, as well as for specific surface treatment applications. The compact size of the lamp allows for a small system design and design flexibility. Philips TUV PL-S lamps offer almost constant UV output over their complete lifetime. Thanks to the single-ended lamp base, lamp replacement is easy.
Main Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Pond water units
- Air treatment units
- Stand-alone purifiers
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp - Special lamp glass filters out the 185 nm ozone-forming radiation
- 2-Pin PL-S lamp base contains a special starter for almost instant starting on electromagnetic drivers
- 4-Pin PL-S lamps are designed for use on electronic drivers
Technical Specifications
UV Compact Germicidal Lamps
TUV TL Mini
Description
Philips TUV TL Mini lamps are slim double-ended UVC (germicidal)
lamps used in residential water and air disinfection units, as well
as for specific surface treatment applications. The small 16 mm
diameter of the lamp allows for a small system design and design
flexibility. Philips TUV TL Mini lamps offer almost constant UV
output over their complete lifetime.
Main Applications
- Deactivation of bacteria, viruses and
other micro-organisms - Residential drinking water units
- Fish pond water units
- Stand alone air purifiers
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
Technical Specifications
TUV T5
Description
TUV T5 lamps are single- or double-ended UVC (germicidal) lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer almost constant
UV output over their complete lifetime.
Main Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Industrial water disinfection equipment, e.g. for food & beverage industry
- Small municipal water treatment systems
- Swimming pool units
- Air treatment systems (High Output lamp versions)
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
- Small diameter
- Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
Technical Specifications
TUV T8
Description
TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional air disinfection units. TUV T8 lamps offer almost constant UV output over their complete lifetime. Moreover, they have a long and reliable lifetime, which allows maintenance to
be planned for in advance.
Main Applications
- Air disinfection systems in professional applications such as universities, hospitals, jails and laboratories
- Upper air and whole room disinfection equipment in hospitals, intensive care units and surgery rooms
- Areas with low maintenance and/or disruptive costs
- Fish ponds and process water units
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Long lifetime of 18,000 hours*
- High reliability with the lowest percentage of lamps that fail prematurely in the market (90% of all lamps still operate on full output and quality after 15,000 hours*)
- Special lamp glass filters out the 185 nm ozone-forming radiation
Technical Specifications
High Power Amalgam and Mercury Lamp Systems
TUV Amalgam XPT System
Description
Philips TUV Amalgam XPT system consists of an electronic driver
that operates one TUV Amalgam XPT lamp, mounted in a sleeve.
The electrical specifications are tailored to the lamp, ensuring an
optimized performance of the Philips TUV Amalgam XPT system.
Thanks to extensive testing before a lamp system is released,
we can ensure maximum reliability and long lifetime.
Main Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Municipal drinking water treatment equipment
- Municipal waste water treatment equipment
- Process water treatment equipment
- Swimming pool units
- Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industries (ozone version)
Features
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
- Special amalgam used for highest efficiency over wide temperature range
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
- Philips electronic driver available for a perfect interface
- Universal burning position possible depending on the application
- Lamp can be made from special quartz (open / synthetic) to maximize
Technical Specifications
DynaPower System
Description
The Philips DynaPower lamp and driver offers you a best-in-class,
no-risk alternative for specific amalgam open channel systems.
The delicate balance between lamp and driver has been optimized
to achieve the best possible performance. The Philips lamps and
drivers are all designed and manufactured in-house, to give you
guaranteed peace of mind.
Main Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Municipal drinking water treatment equipment
- Municipal waste water treatment equipment
- Process water treatment equipment
Features
- Operates 230W, 260W (HO) and 335W (HO) TUV Amalgam XPT lamps
- Single lamp operation possible
- Cooler operating temperature for additional energy savings
- 100% stress testing minimizing 0-hour failures
- Protection against voltage peaks
- Permanent overvoltage protection
- Approximately 20 seconds start-up time (compared with 90 seconds for similar drivers on the market)
- Special lamp glass filters out the 185 nm ozone-forming radiation
Technical Specifications
