Metering Solutions

Prepaid Metering Solutions​

• Available in single phase – S(30)A & 10(60)A, Three phase 10(60)A
• Confirming as per IS 1S884: 2010with Class 0accuracy
• Suitable for dual source application
• Transparent system for utility and end consumer
• Noworry of meter reading
• Automatic Supply disconnection for zero or negative meter balance
• Optional mobile billing software for bill generation

LPR Zigbee Metering Solutions​

• Available in Single Phase S-30A & 10-40A
• Energy Meter Based on IEEE 1 S.4
• Centerlised data collection system
• Automated device address management
• Each meter aids transfer of data for self as well as neighboring meter
• Wire less commissioning, network scalabilityfeatures

Automatic Metering Solutions​​

• High speed GSM/GPRS communication 9600 bps
• Suitable for remote reading application
• On demand data transfer
• Optional SMS facility for configured events

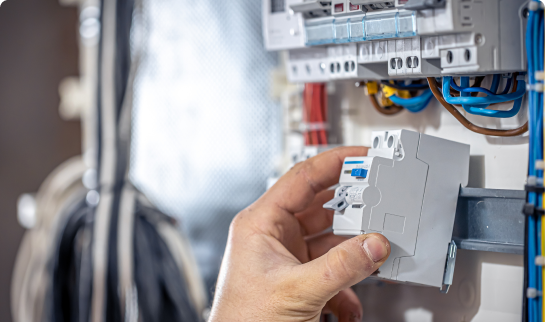

Switchgear & Controlgear

Air Circuit Breakers (ACB)​

• Range : 630A-6300A
• Operational voltage upto 690V & even above – on request
• lcu 50kA to 120kA at 500Vac
• lcs = 100% lcu throughout the range
• lcw : 50kA to 1OOkA (for 1 sec)
• Customer  oriented   Trip   Relay   –   with   advanced measurement functions & communication functions
• Tested &certified as per IS/IEC 60947-2

MCCB-Thermal Adjustable Breaker​

• Conforms to IS/IEC 60947-2.
• Available in 1P, 2P, 3P & 4P Versions rated current from 1OA- 800A & breaking capacity (from 1OkA to 65kA).
• 4P version available with neutral fully
• Adjustability-offers close protection  to  different  load
• Line load reversibility,Low let through
• Wide range of internal and external
• ROHS Compliant, also available for DC
• Single Pole MCCBs are available from 1OA-250A with breaking capacity from 1OkA-50kA, SP MCCBs from 63A- 250A are available with thermal adjustable feature



MCCB-Motor Duty

• Available upto 22 kW/30 HP intwo
• Breaking capacity – 25kA/36kA.
• Clear indication of ON, OFF & Trip
• Low let through
• For Special motor starting condition (Starting time beyond 10 Sec & other specific condition)- please contact us

Microprocessor MCCB

• Rated 25A-800A Breaking capacity 25kA/36kA/50kA/65kA.
• Noof Poles 3/4.
• Overload protection ADJUSTABLE in the range 30% to 100% of Inwith variable time
• Short circuit Protection ADJUSTABLE in the range 400% to 1000% of Irwith variable time
• Ground Fault Protection ADJUSTABLE in the range 10% to 40% of Inwith variable time
• Communication Feature
• Suitable for
• NO EXTERNAL Power required for the electronic
• True RMS sensing for precise and RELIABLE

Motor Protection Circuit Breaker​

• Wide range of MPCB from 1 to 80A
• 22 Ratings injust 2 frames
• Rotary Type Operation (Direct& Extended Handle)
• Protection against O/L, SIC & Single Phasing
• Higher Breaking capacity upto 50kA, 480 VAC
• Electrical/ Mechanical Life – 1 Million Operations
• Suitable for Isolation & Type IICo-ordination
• Ambient Temperature Compensated
• Site Mounted add on accessories

MCCB Enclosure​​

• MCCB conform to IS/IEC 60947-2
• Current ratings from 16A- 3P &4P version
• Low let through energy
• Breaking Capacity (kA) : 1OkA – 65kA(with MCCB)
• Line Load Reversibility
• Minimum maintenance, User friendly,robust & compact
• Highly reliable tested solution

Overload Relay Thermal​

• Differential Bimetallic overload relays from 1 to 800A
• Built in 1NO+1NC potential free contacts
• Choice of Contactor or separate Mounting
• Option of Manual IAuto or Remote Reset
• Sealable cover to avoid tampering, Trip indicator
• Class 10Aor Class 20
• Site Mounted add on accesories

Contactors

• Widest Range of 3P &4P Contactors upto 800A
• Control Contactor with option upto 12 contacts
• Capacitor Duty Contactors upto 62 kvar
• Highest Electrical Life upto 5 million operations
• Site mounted add on accessories (Auxiliary Contacts, Mechanical Interlock, Surge Suppressor, Timer, Mechanical Latch Units)
• Type IICo-ordination
• CE marked & UL Certified

Submersible Pump Control Panel​

• Range-1 HPto 40HP(DOL& Star Delta) in 2 Models
• Heavy Duty Contactors for longer
• Control Voltage- Phase (130 to 290V) or 3 Phase (280 to 440V).
• Short Circuit Protection – MCB/MCCB (1OkA) in Deluxe
• LED indications for R, Y,B Phases & Pump ON/OFF.
• Ammeter & Voltmeter with Selector

• Auto – Manual Bypass
• Other Protections – Single Phasing I Over Load I Unbalance

  Voltages/ Reversal of Phases.

MCCB Distribution Panel​

• Incoming -Upto Outgoing- Upto 250A
• Range : 4, 6, 8, 1O & 12 ways
• No. of poles of MCCB -3 / 4
• Multifunction Digital Metering – Optional
• Shrouded bus bar can withstand high fault currents
• Provision for single Door I Double Door

Change Over Switches

AV Onload Changeover switch​

• Range: 6 frame sizes, 63- 3150A, 3 Pole & 4 Pole, IS 13947 part3/93
• Arc Chute plates to enhance contact 100% Neutral.
• Compact body of fiber glass, reinforced polyester
• High Mechanical & Electrical
• Total safety with Terminal cover, Source Separator and Phase Barrier as standard
• Mounting possible in both horizontal and vertical
• Available in Open Execution and Sheet Steel
• Prewired Auxiliary contacts upto 2 nos.

AV Switch Fuse Changeover​

• Range : 125A-630A, 4 Pole, 415V AC as per IS 13947 Part 3/93.
• Arc Chute plates to enhance contact 100% Neutral.
• Body offiber glass reinforced polyester
• Prewired Auxiliary contacts upto 2NO
• Protection against over current and short circuit faults by fuses of high rupturing capacity of 80kA
• Total safety with Terminal cover, Source Separator and Phase Barrier as standard
• Available in Open Execution/Sheet Steel enclosure

AV Onload Bypass Switch​

• Range: 125A – 1600A, 4 Pole, 415 V AC as per IS 13947 Part3/93.
• Arc Chute plates to enhance contact 100% Neutral.
• Switch is designed for specific need in IT industries where UPS and Servo stabilizer provides main source of
• Prewired Auxiliary contacts upto 2nos.
• Available in Open Execution /Sheet Steel enclosure
• Total safety with Terminal cover, Source Separator and Phase Barrier as standard feature.

AV Cubicle Load Break switch​

• Range : 63 – 3150A, 3 Pole & 4 Pole, 415 V AC as per IS 13947 Part 3/93.
• Arc Chute plates to enhance contact 100% Neutral.
• Prewired Auxiliary contacts upto 2NO
• Suitable for DC-23A, 260V, application withoutany
• Available in Open Execution/Sheet Steel
• Total safety with Terminal Cover, and Phase Barrier as standard feature

Protection Devices

MCB​

• Range : 0.5 to 80 Amps 240/415\/, AC
• Available in SPN, DP. TP. TPN & FP
• Breaking capacity 1OkA
• Insulation voltage : 660V,frequency : 50/60Hz
• Finger Touch proof (lp20)
• Midtrip facility
• Protection against Short Circuit & Over Load
• Low let through energy & lowwatt loss
• Energy limiting class 3
• Trip free mechanism
• Available in B, C & D Curve
• Accessories :UV,Shunt trip, Auxiliary contact
• DC MCB available in SP & DP
• DC MCBvoltage : 12Vto 220V

ISOLATOR

• Range :40, 63,100 & 125 Amps
• Conforms to IS/IEC 60947-3
• Available in 3P & 4P version
• Finger touch proof (IP-20)

RCCB

• Range: 25-80Amp, 2 Pole &4 Pole Version
• Sensitivity: 30mA, 1OOmA, 300mA
• Conforms to IEC /EN: 61008& IS:12640
• Dedicated earth leakage protection
• Voltage Rating 240/415V (AC), 50Hz
• Protection against Electrocution, Short Circuit & Electrical fire
• Consistent performance, Compact & Space saving
• Auxiliary Switch optional

CHANGEOVER SWITCH​

• Range : 25A, 40A & 63A
• Conforms to IS/IEC 60947-3
• Choice of 2 Pole & 4 Pole versions
• Voltage Rating 240 I415V (AC), 50Hz
• Front Operation with three stable positions 1-0-11
• Isolator at middle position
• DIN Rail Mountain Facility

ACCL SINGLE PHASE​

• Range : 6Amp- 1OAmp in SPN.
• Specification : IEC -60947-6-1.
• Rated Voltage : 240/415V AC,
• Microcontroller based  DIN  rail  mountable  with  neutral
• Inbuilt SMPS for low power
• Operational status indication through
• Automatic generator on/off
• Built-in time delay for fall safe changeover

ACCL THREE PHASE​

• Range :25A,40A & 63A
• Specification IEC 60947-6
• Voltage 415V I 230V
• Electronic & Mechanical interlock for safe changeover
• Built intime delay for fail safe changeover
• Overload tripping in DG supply
• Wide Voltage operation – (140 to 280) volts
• Reliable micro controller based design for sensing & control

Distribution Systems

Distribution System Single Door

• User friendly, Aesthetically designed available in EX series Distribution Systems in 4ways to 16ways
• SPN & TPN Versions
• Fitted with DIN channel, Bus Bar, Neutral Link Bar, Earth Bar, Inter connecting cables with copper thimble
• Can be mounted on surface/flush

Distribution System Double Door

• User friendly, Aesthetically designed available in DX series Distribution Systems in 4 ways to 16ways
• SPN & TPN Versions
• DB’s available with cement guard
• Bus Bar rating up to 200Amp of tinned copper fully insulated
• Fitted with DIN channel, Bus Bar, Neutral Link Bar, Earth Bar, Inter connecting cables with copper thimble
• Complete range of Db’s with Double punched knockout to facilitate different size cable glands
• TPN Db’s fitted with detachable gland plates at the Top & Bottom with double knock-out
• Double Door Db’s inflush mounted design
• Special DB’s for projects also

Distribution System Vertical

• Aesthetically designed, good looking & superior DB’s with latest style
• Fittedwith Bus Bar, Shorting Links, Neutral Bar & Earth Bar
• Compact design having complete shrouding all over the inter connecting links
• Provision of ELCB along with TPN/FP Isolator as incomer
• Suitable to use as SP/DP/TP/TPN outgoing
• Available with MCCB as incomer
• Available in Single Door & Double Door



Distribution System Phase Selector

• Compact distribution system
• Convenient mounting and operation
• Flexibility to use MCB’s and ELCB /ELMCB
• Fittedwith : DIN channel Bus Bar NL Bar 3
• Phase changeover switches duly wired (except for MCB’s and ELCB’s)



Pre-Wired Distribution Box

• Aesthetically designed compact distribution
• Duly pre-wired with FR/FRLS wire
• Available SPN & TPN Versions
• Fitted with bus bar terminal block for incoming/outgoing
• Neutral & earthing duly pre-wired
• Provision of MCB I Isolator I RCCB as incoming Single phase
• Available in 1.6mm & 1.2mm sheet steel thickness.

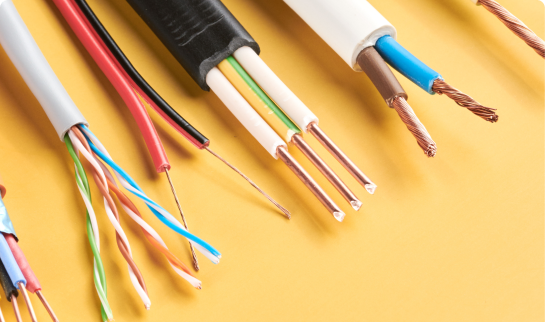

Wires & Cables

Domestic & Industrial Wire​

• Range : 5 to400 Sq. mm in Single Core & Multicore.
• Available in FR I FR-LHS I HR I ZHFR insulation
• Conforms to IS :
• Multi strand 100% Pure annealed Electrolytic grade copper
• Bunching of copper in uniform lay & UVShield
• Longer Life
• Precise optical control
• Better Colour Rendering
• Highly Efficient
• High insulation
• Double Insulated with ultra thin layer

Co Axial Cables

• Range : RG-59, RG-6, RG-11
• Solid bare annealed electrolytic grade copper
• PE foam
• Aluminum Alloy Braiding/ Aluminum Foiling/Taping
• Specially formulated FR PVC
• Low attenuation, High band width Moisture proof, low loss signal quality

Submersible Cable

• Range : 0to 50.0 Sq. mm three core flat cable.
• Multi stranded bare annealed electrolytic  grade  copper
• Specially formulated PVC compound (Type A & ST-1).
• Round submersible cable can be specially asked
• Conforms to IS:694.

Telephone Cable

• Range :40 & 0.50mm dia conductors available up to 50 pairs.
• Solid/Stranded Bare annealed copper
• PVC /PE
• Individual I Overall Shielded with Aluminium tape (Polyster backed)/ MelinexTape/Wire braiding/ Aluminium foil
• Low cross talk, Low attenuation, High speed transmission

Control
Cable

• Range : S & 2.S Sq. mm upto 37 Core, 1100 Volt Grade confirming to IS: 1SS4-1/1988 & IS 7098-1/1988.
• Solid/ Stranded 100% pure annealed  Electrolytic copper
• Insulation PVC/XLPE/HR
• Armourd/Unarmourd- GI Roundwire/Flat
• Outer Sheath PVC (ST-1 & ST- 2)/FR-LSH/FR/
• Heavy Duty
• Best combination
• Efficient & Use in Process Control, Communication and Panel control.

Instrumentation
Cable

• Range : S Sq. mm to 2.S Sq. mm Conforming BS S308-I & II
• Shielding: Core/Pair/Triad/Quads.
• ABC/ATC,Solid/Standard 100% pure annealed Electrolytic grade copper
• Armoured/Unarmoured- GI Round wire/Flat
• Low attenuation and cross
• For Analog & Digital
• Low structural return
• Use in Digital Control, measuring & Communication

Networking Data Cable (CAT-Se & 6)

• Range :4-Pair UTP CAT-Se and CAT-6
• Solid 100% pure annealed Electrolytic grade copper
• Low attenuation and cross
• Low structural return
• Frequency 1OOMHz for CAT-Se cable and 2SOMHz for CAT-6
• Gigabite Ethernet
• Suitablefor Voice, Data,
• 100 ohm impedance cable

Fire Survival Cable

• Range : S Sq. mm to 2.S Sq. mm Conforming BS: 7846 600/1000 Volts
• Shielding: Core/Pair/Triad/Quads with Mica/glass fire barrier
• ABC/ATC,Solid/Standard 100% pure annealed Electrolytic grade copper
• Armoured I Unarmoured – GI Round wire I Flat
• Operating Temperature -10°C +900
• Fire Tests Bs6387 CWZ, BS 8491, IEC 60331-2

CCTV Cables

• Range : 3+1 CCTV and 4+1 CCTV
• Coaxial Cable consists of solid annealed bare copper
• PE insulated with Nylon foamed dielectric aluminum foil taped, Jelly flooded, braided with aluminum alloy I copper and FR PVC sheathed
• Low loss characteristics reduced attenuation of the video signal

Flat Elevator Cables

• Range : S to 1.5 Sq. mm. for upto 12 core.
• Flexible bare annealed electrolytic grade
• PVC insulated & PVC
• Specially formulated PVC

DC Solar Cables

• Range : Single core S, 4, 6, 10, 16, 3S, SO, 70 & 9SSq. mm.
• Flexible tinned annealed electrolytic grade copper conductor.
• Specially formulated cross linked Polyolefin compound insulated and low smoke zero halogen sheathed with UV and Ozone
• Latest requirement for PV system as per EN-S0618.

ACCESSORIES - VEDIO DOOR PHONES

Vedio Door Phone 5" With Recording

• 5″ Colour TFT Screen Handfree with inside adaptor
• Sleek Look
• Enables Two way Communication
• Unlocks the electric lock on recognizing the visitor
• Choosefrom 16 different Ringtones
• Advanced Night Vision Camera
• Expandable upto 3 cameras and 5 monitors
• Vandal Proof Metal Cover



Vedio Door Phone 7" With Recording

• 4 Ghz digital frequency hopping and encryption technology, transmission distance up to 200 meters infree filed
• 7″ Hands free color TFT Screen
• Two Way Communication
• Choose from 16 different ring tones
• Catch the visitor’s  photo  and  video  automatically,  with recording function
• ln-bult – 8GB, Expandable upto 32 GB
• Records Playback with time and date
• Advanced Night Vision Camera
• Unlocks the electric lock on recognizing the visitor
• Expandable up to 4 cameras

Vedio Door Phone 7" Without Recording

• 7″ Hands free color TFT Screen
• Touch button
• Choose from 16 different ring tones
• Catch the visitor’s photo and video automatically,with memory function
• Records Playback with time and date
• Two Way Communication
• Advanced Night Vision Camera
• Unlocks the electric lock on recognizing the visitor
• Expandable up to 3 cameras and 5 monitors
• Vandal Proof Metal Cover
